Public Address System

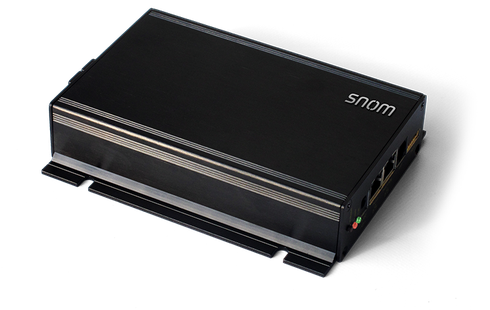

Snom PA1+: A fine-tuned business solution
Snom has developed a SIP bridge (PA1+) enabling businesses to extend their existing public announcement speaker system while upgrading from digital/POTs systems into SIP-based voice communication solutions. The PA1+ can be used in both small and large applications due to the inclusion of a 6.5-Watt amplifier for single speaker projects. Larger projects supported by 600ohm interface for better connectivity can utilize multiple speakers driven by external high wattage amplifier(s). The PA1+ serves as an auto SIP answering preamp that drives the multi-speaker setup. Use of Snom’s proven SIP stack enables wide compatibility with all SIP platforms.
Applications for the Snom PA1+ include:
- Large PA systems driven by external amplifier(s).
- Small PA systems driven by internal PA1+ amplifier (eg. door answering system), and internal relay to open door(s).
- Phone ringer amplifier with ability to drive strobe light as visual indicator.
- Multi-cast relay up to 4 SIP identities to four multi-cast IP addresses.
Quick summary
-
Works from your Snom handset
-
6.5 Watt power amplifier
-
Works with handset, headset or in handsfree mode
-
Easy to install
-
Broadcasting announcements over 8 ohm speakers
-
No training needed
General Information
- Voltage feed via network (PoE): IEEE 802.3af, class 3
- Ethernet: 2 x IEEE 802.3, 10/100 Mbps switch
- This product does not ship with a power supply. If you are not using a POE enabled network, you must purchase a POE injector or use a standard Snom power supply.
- SIP communication + Multicast
- Central configuration and maintenance
- Web interface menu
- Remote volume configuration
- 6.5 Watt power amplifier, class D (loudspeaker not included)
- Key for announcement of IP address and for resetting
- 2 LED status indicators
- For maintenance purposes: two 3.5 mm jacks for headphone connection
- 4 freely programmable output pins, configuration via web interface
- Robust housing for wall-mount
