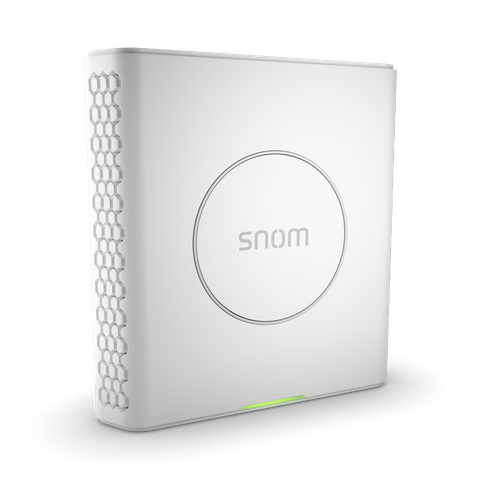

M900 DECT Multi-Cell Base Station
With the new M900 base station, we are opening a new chapter in professional and modern multi-cell DECT technology.
The new easy-to-use base station comes not only in a completely new design, but also with new, versatile functions. In addition to an integrated DECT manager, the M900 also offers DECT and LAN synchronization. The integrated DECT manager manages all base stations in one installation and ensures constant availability and seamless handover. This means that calls are seamlessly transferred between the individual base stations - even across floors or buildings.
Security is a top priority in daily business communication. With the integrated TLS encryption, the M900 base station also sets absolute standards in terms of encryption.
Extreme scalability
The new M900 DECT base station provides a solid foundation for any installation size. From a small office with only one base station up to, for example, a hospital with several thousand devices, the integrated DECT manager housing state-of-the-art technology, can enable individual installations comprising up to 1,000 base stations and up to 4,000 handsets. Thanks to the M900 base station, the maintenance of the devices can also be carried out easily and efficiently. Each base station can wirelessly send software updates to the connected handsets, greatly reducing the workload for the IT department.
DECT:
- Frequency bands:
- 1880 - 1900 MHz (EU)
- 1920 - 1930 MHz (US)
- Output power: EU < 250 mW, USA < 140 mW
- Protocols: DECT, DECT 6.0
- Seamless handover and roaming
- Handover using DECT or LAN synchronisation (IEEE1588)
- Wideband audio
- Authentification/encryption of base and handset
Range:
- Indoors: Up to 50 meters
- Outdoors: Up to 300 meters (for indoor use only)
Multicell System:
- Up to 4.000 registered handsets in the same network in multicell setup
- Up to 1.000 registered base stations in a multicell setup
- Up to 100 repeaters in a multicell setup(2)
- Up to 8 narrowband or 4 wideband calls per base station in multicell setup
- Up to 10 narrowband or 5 wideband calls per base station in single-cell setup
- Common phonebook with up to 3000 entries
- List of registered handsets
- Compatible to M700 running the same software version
Audio, Codes:
- G.722 (5 channels, 4 in multicell operation)
- G.711 A-law, μ-law
- G.726 (10 channels, 8 in multicell operation)
- Code negotiation, codec switching
- A900 enables:
- G.729 (10 channels, 8 multicell operations)
- BV32 (10 channels, 8 multicell operations)
- Opus (8 channels)
User interfaces:
- LED status indication, multicolor
- Reset key
- Web interface
Installation:
- Positioning:
- Wall mounting
- Ceiling mounting
- Remote software updates via HTTP / HTTPS / TFTP
- Automatic loading of settings via HTTP / HTTPS / TFTP
- Completely configurable through Web interface
- Static IP, DHCP support
- NTP (Network Time Protocol)
- Secure provisioning and authentication with Mutual TLS through individual vertificated issued by Snom CA
- Compatible handset feature RSSI tool, no additional measurement equipment needed
Hardware Specifications:
- Weight: approx. 306g
- Dimensions: approx. 144x140x35 mm (LxWxD)
- Antenna diversity (two internal omni-directional antennas for better transmission and reception)
- Power: Power over Ethernet (PoE) IEEE802.3af
- Class 2. If PoE is not available, the A5 PoE injector can be used (not included)(3), Power adapter available (4)
- Ethernet connector: RJ 45
- LAN interface: 10/100 BASE-T IEEE 802.3
- Colour: White
- Part numer: 00004426 (EU), 00004441 (US)
Network:
- HTTP and HTTPS
- LLDP
- IEEE 802.1Q
- TLS 1.2
