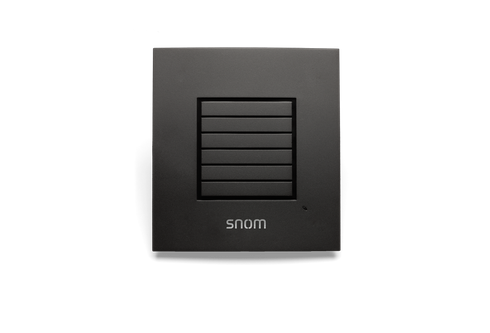

M5 Range Extending Repeater
Extending the range of your DECT solution
This wall mounted repeater increases the reception range of the M700 and M300 base stations, allowing for free movement between stations and for DECT calls to continue uninterrupted as the speaker moves around an area.
The M5 DECT Repeater is a simple and easy to deploy solution. It serves as a useful tool in locations requiring mobile coverage across several floors or throughout large buildings. The repeater increases the reception range of individual bases and handsets and bridges gaps between base stations, promoting free movement by creating a single, seamless network. The M5 repeater offers superior audio quality in both wideband and narrowband calls.
Quick summary
-
Support single and multi-cell
-
Increase the range without Ethernet
-
Wideband audio
-
Up to 5 simultaneous calls
-
Daisy chaining
General Information
- Weight of repeater: approx. 126g
- Weight of power adapter: approx. 120g
- Dimensions: approx. (mm) 118x129x33 (WxHxD)
- Antenna diversity (two internal omni-directional antennas for better transmission and reception)
- Power: Power adapter 5,5 V 600 mA included
- Plugs: patented interchangeable clips, EU and US clip included, UK clip available optionally
- Color: black
User Interface
- LED indicator, two colors
- Reset key
Features
- 12 slots
- 2 simultaneous wideband calls
- 5 simultaneous narrowband calls
- Slot multiplexing
- Slot packing
- Full slot move over request
Range
- Indoors: Up to 50 meters
- Outdoors: Up to 300 meters
- (Repeater for indoor use only)
DECT
|
Standards Conformance
- EN 301406 (TBR6)
- EN 30176 - 2 (TBR10)
- EN 60950 - 1 (Safety)
- IEC60950 -1
- CSA c-CSA-us / UL60950 - 1
- EN 301489 (EMC, ESD)
- RF (EMF, SAR)
- FCC part 15D, conducted & radiated
- FCC part 15B
- RSS213
Installation
- Registration on DECT base
- Wall mounting
