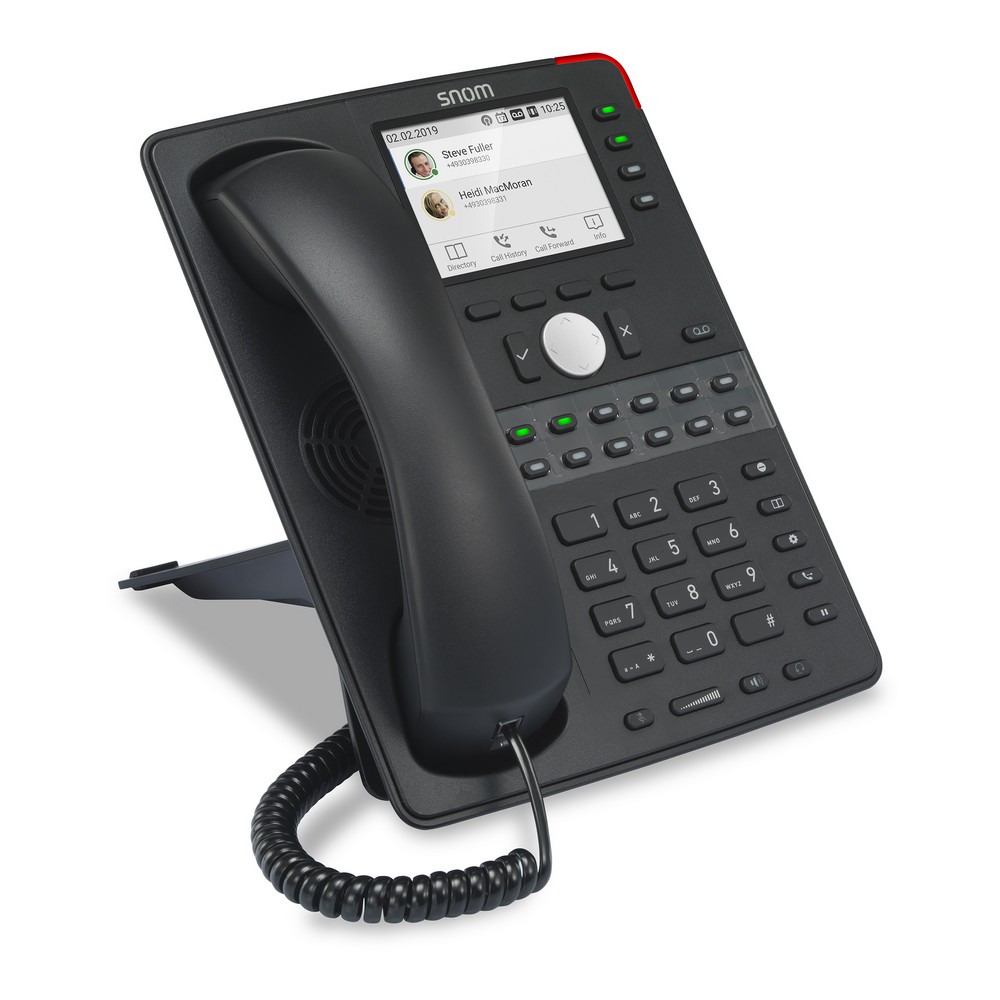

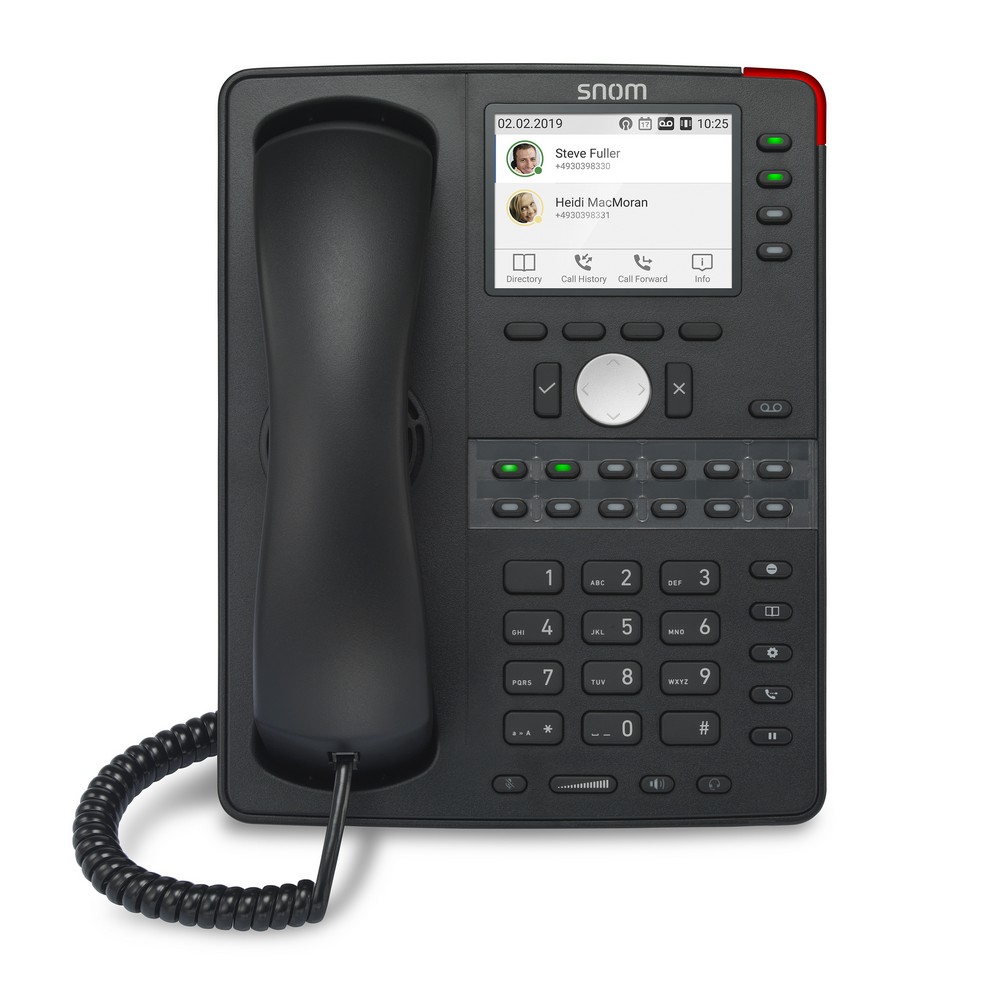

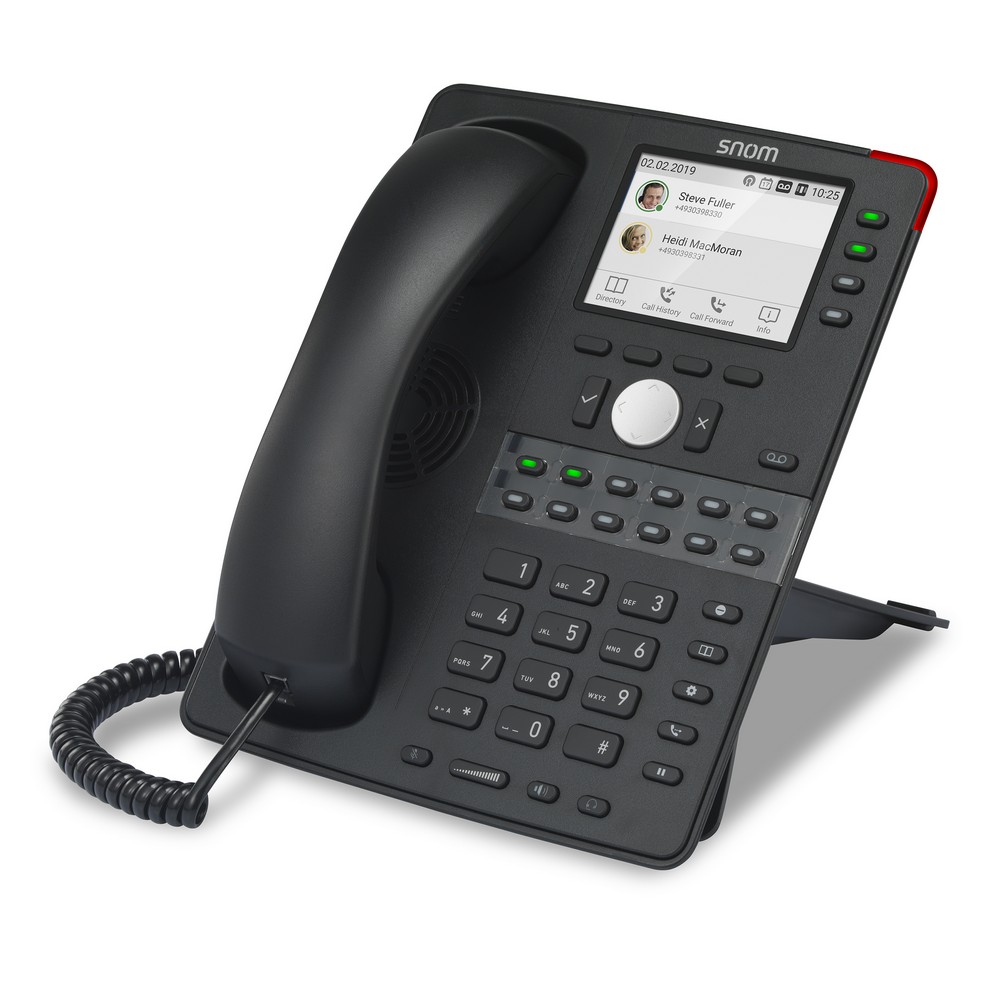

D765 Desk Telephone
A desk phone with HD audio and a rich visual information display
The D765 combines ease of use, versatility, design quality and audio performance. It offers a 3.5” high-resolution color TFT display that delivers rich information – such as presence and photocaller ID – to the user. 16 freely programmable multicolor function keys can be configured for a variety of one-touch telephony functions such as speed dial, busy lamp field or presence indication.
This desk phone features two Gigabit Ethernet ports, built-in Bluetooth compatibility and a high-speed USB port for easy connection of accessories including a USB or Bluetooth headset, a WiFi stick or a D7 expansion module. Superior audio quality is delivered by the advanced speaker and microphone system and the Digital Signal Processor (DSP).
Quick summary
-
Elegant design
-
High-resolution color display
-
16 LED function keys
-
Wideband audio
-
USB connectivity
-
Gigabit switch
-
12 SIP identities
-
Built-in Bluetooth compatibility
-
Warranty 2 years
This is a carousel. Use Next and Previous buttons to navigate.
This is a carousel. Use Next and Previous buttons to navigate.
Additional Features:
This is a carousel. Use Next and Previous buttons to navigate.
Related products
D712 Desk Telephone
D715 Desk Telephone
D725 Desk Telephone
General Information
- Weight: Approx. 900g, without footstand approx. 670g
- Dimensions: approx. without footstand 238x190x40 mm. with footstand 238x190x200/220 mm
- Dual-angle footstand: 46° and 28°
- Wall mountable
- Certification FCC Class B, CE marking
- Safety: IEC 60950-1:207, CB
- Power: PoE or 5V DC (SELV) power supply listed in the user guide
- Ethernet: 2 x IEEE 802.3/1 Gigabit switch
- 1 x LAN, 1 x PC: RJ 45
- USB Port 1 x type A, USB 2.0 Hi/Full/Low Seed-compatible host interface
- Handset: 4P4C connector
- Hearing aid compatible (HAC) handset
- Headset: (wired) 4P4C connector; wireless via Snom EHS Advanced
- Color: Black
User Interface
- Localization (language, time, dial tone)
- Red LED for call indication / message waiting
- 4 context-sensitive keys
- 16 programmable function keys
- Paper inlay for labeling of function keys
- Dedicated message key
- Audio keys with LED indication: Mute, speakerphone, headset
- Volume key
- 4-way navigation key, OK and cancel keys
- Menu-driven user interface
Phone Functions
- 12 identities (lines)
- Directory with 1000 contact entries
- Import/export of directory
- Speed dialing
- URL dialing
- Local dial plan
- Automatic redial on busy
- Call completion (busy/unreachable)
- Caller identification
- Call waiting
- Call blocking (deny list)
- Blocking of anonymous calls
- Auto answer
- Lists of missed, received and dialed calls
- Hold
- Music on hold
- Handling of up to 12 simultaneous calls
- Blind and attended transfer
- Call forwarding
- 3-way conference on the phone
- Extension monitoring, call pickup
- Call park, call unpark
- Multicast paging
- DND mode (do not disturb)
- Mute microphone
- Keyboard lock
- Client Matter Code (CMC)
- Unified Communications ready
Web Server
- Built-in HTTP/HTTPS server
- Remote configuration/provisioning
- Dialing from web interface
- Password protection
- Diagnostics (traces, logging, syslog)
Security, Quality of Service
- HTTPS-Server/Client
- Transport Layer Security (TLS)
- SRTP (RFC3711), SIPS, RTCP
- VLAN (IEEE 802.1X)
- LLDP-MED, RTCP-XR
- VPN Support
- Web interface password protection
Codecs, Audio
- Wideband audio
- G.711 A-law, μ-law
- G.722 (wideband)
- G.726, G.729AB, GSM 6.10 (FR)
- Comfort Noise Generator (CNG)
- Voice Activity Detection (VAD)
Web Server
- Built-in HTTP/HTTPS server
- Remote configuration/provisioning
- Dialing from web interface
- Password protection
- Diagnostics (traces, logging, syslog)
Installation
- Automatic software updates
- Automatic loading of settings via HTTP/ HTTPS/TFTP
- Completely configurable through web interface
- Remote management via TR-069/TR-111
- Easy WLAN binding via USB adapter
- Static IP, DHCP support
- NTP
